GW-1325 Plasma cutting machine

  • GW-1325 Plasma cutting machine


Product Description

GW-1325 Cheap CNC Plasma Cutting Machine Price Cutter Metal/Aluminium Machine

Applications:

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment,ect.



Materials:



All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.


Features:
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator.  If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. And other advertising devices (vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.
5. Cutting speed, high accuracy and low cost.
6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
8. Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Features:
1. Beam with light structural design, the structure has good rigidity,
 light weight, exercise inertia and low cost.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and
XYZ axis with circular rail (optional formula-type linear guide),
steady transmission, and high accuracy.
3. For advertising solid light, groove metal panel and bottom
plate of the word for cutting, cutting accuracy good indicator.
 If equipped with the U.S. Treasure plasma power can achieve
lower laser cutting machine.
4. And other advertising devices (vacuum forming machines, gear cutting
machine) to form ad word processing pipeline, completely solve the
traditional way of manual processing. Improve efficiency several times.
5. Cutting speed, high accuracy and low cost.
6. CNC system configuration high, automatic arc, stable performance,
 the success rate of 99% arc.
7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as
the standard G code path generated file can also be read by software
conversion software such ad AUTOCAD generated DXF formats. U disk
exchange control system processing files, easy to operate.
8. Plasma torch power supply and supporting all famous brands, a number
of national patents by the manufacturers.





Specification:

Model

GW-1325

Working size

1300mm*2500mm

Table size

1800mm*3200mm

Power

65A hypertherm power

Machine body

Channel steel lathe bed, serrated table

Transmission system



   X.Y

Taiwan HIWIN square linear guide , Rack driving

Drive systems

  X.Y.Z

Step motor, Lead-shine drive

Cutting Thickness

Within 12mm

Cutting speed

0-10000mm/min

Precision

0.07mm

Positioning accuracy

0.02mm

Repeatability

0.02mm

Power

5.5KW

Control System

Start control system & Torch Heright Conyroller

Working Voltage

AC380V±30V, 50HZ

Command Code

G Code, *.MMG, *.PLT, *.eng*AI

File output mode

USB interface

Compatible Software

Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad

Packing type

Fumigation-Free Wooden Case

Packing Size

2280*3470*1300mm

NOTE :

plasma power    cutting thickness

45A/                       ≤10mm

65A/                       ≤12mm

85A/                      ≤16mm



100A/                    ≤19mm

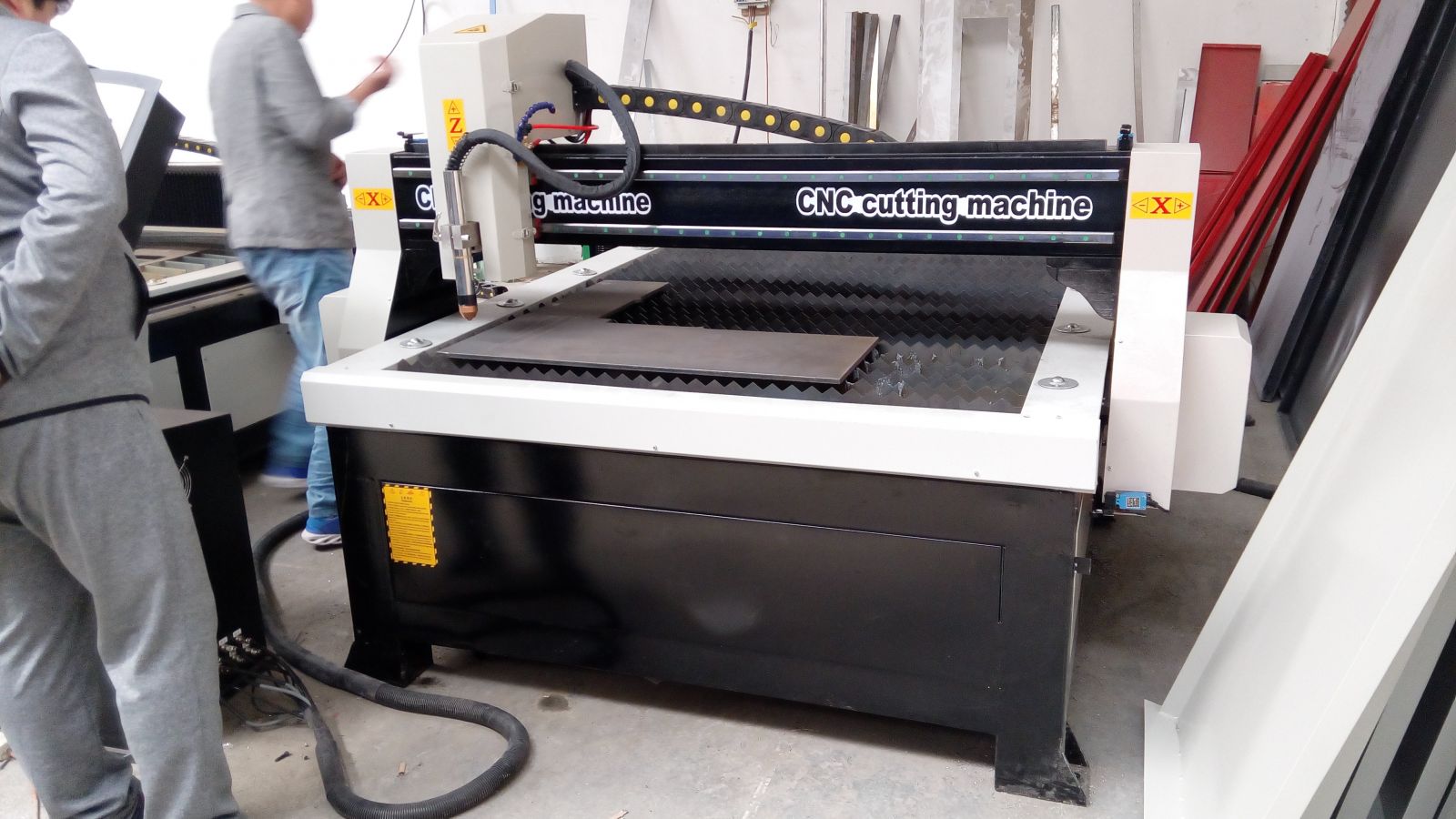

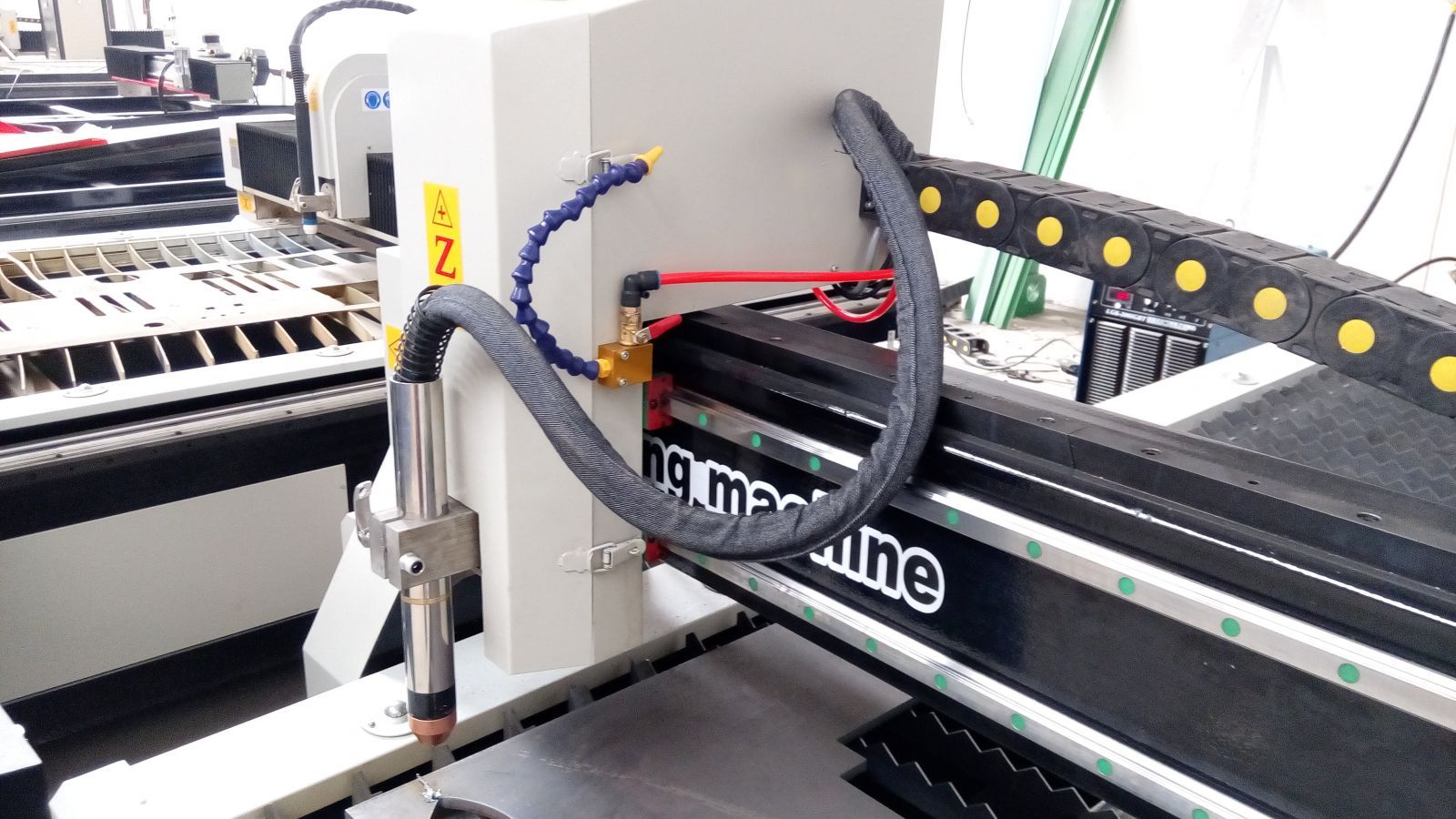

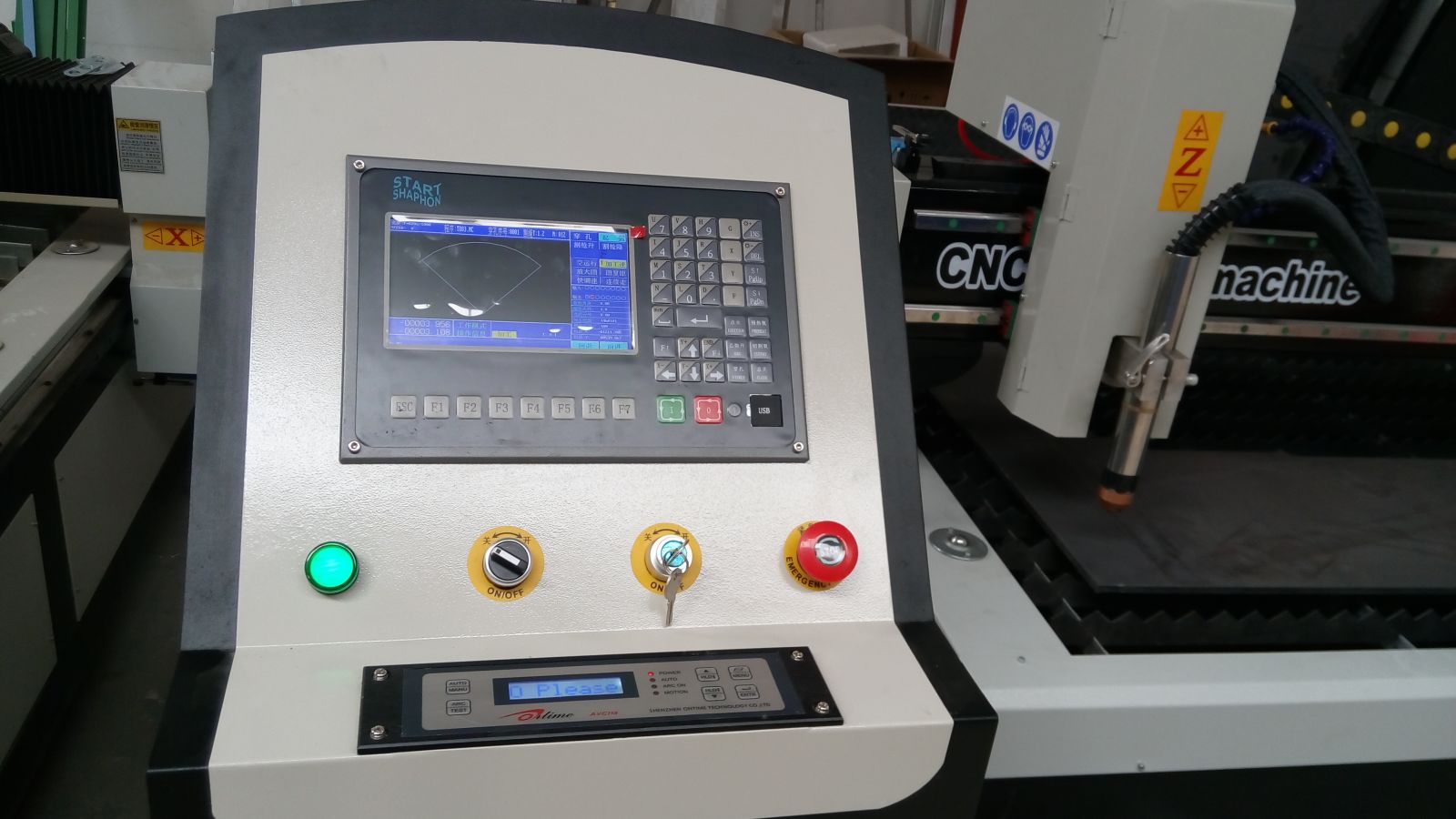

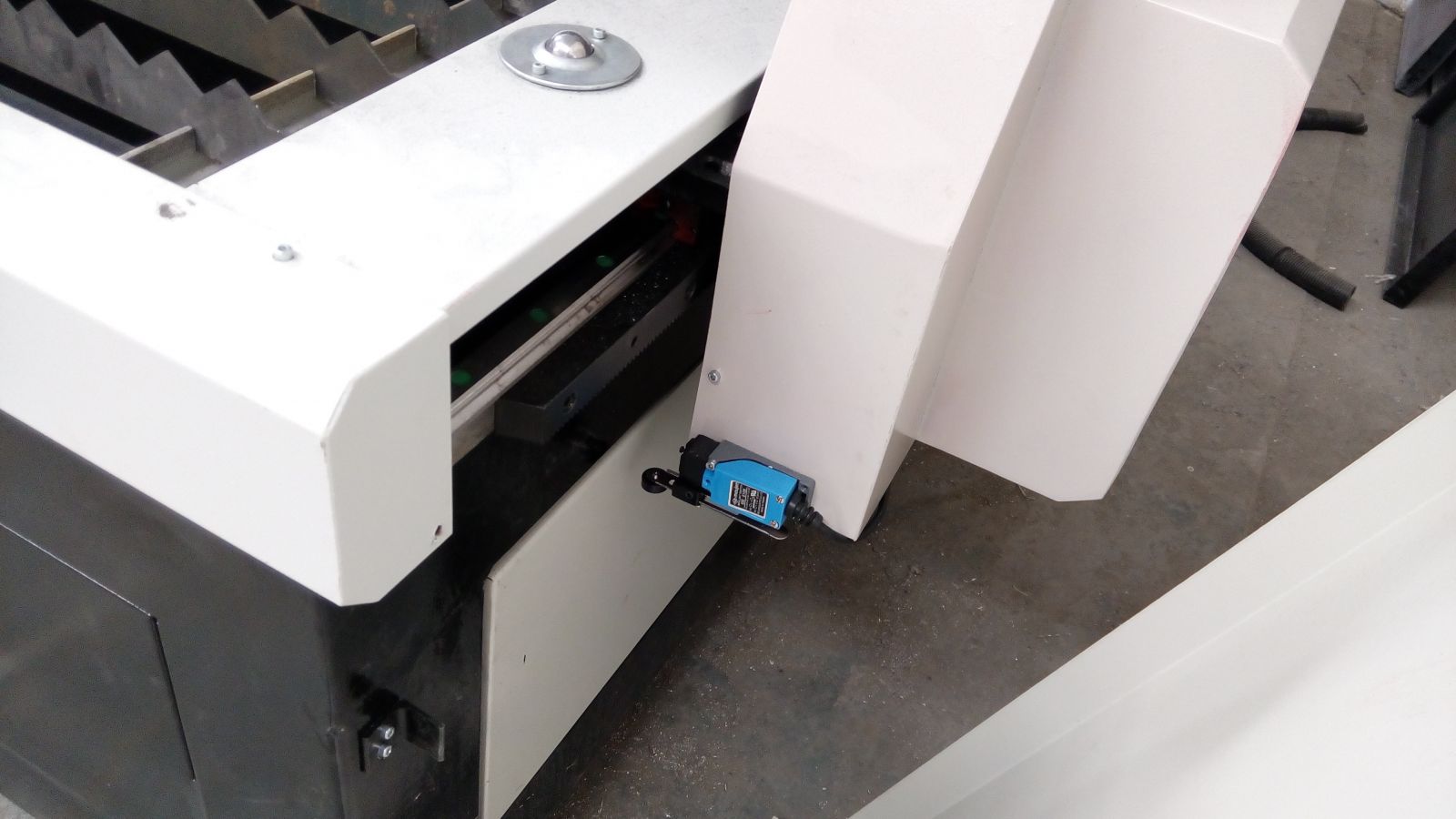

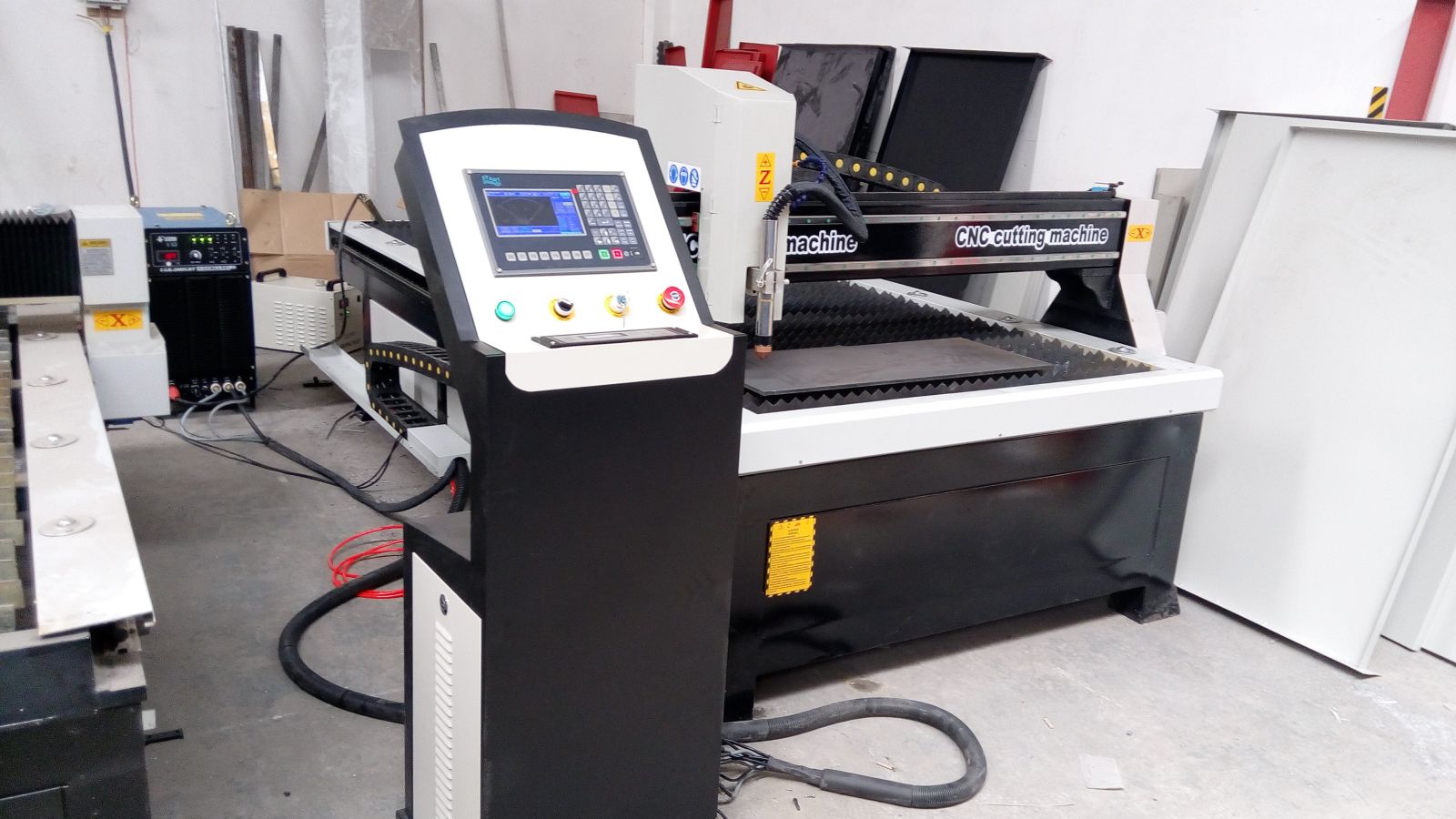

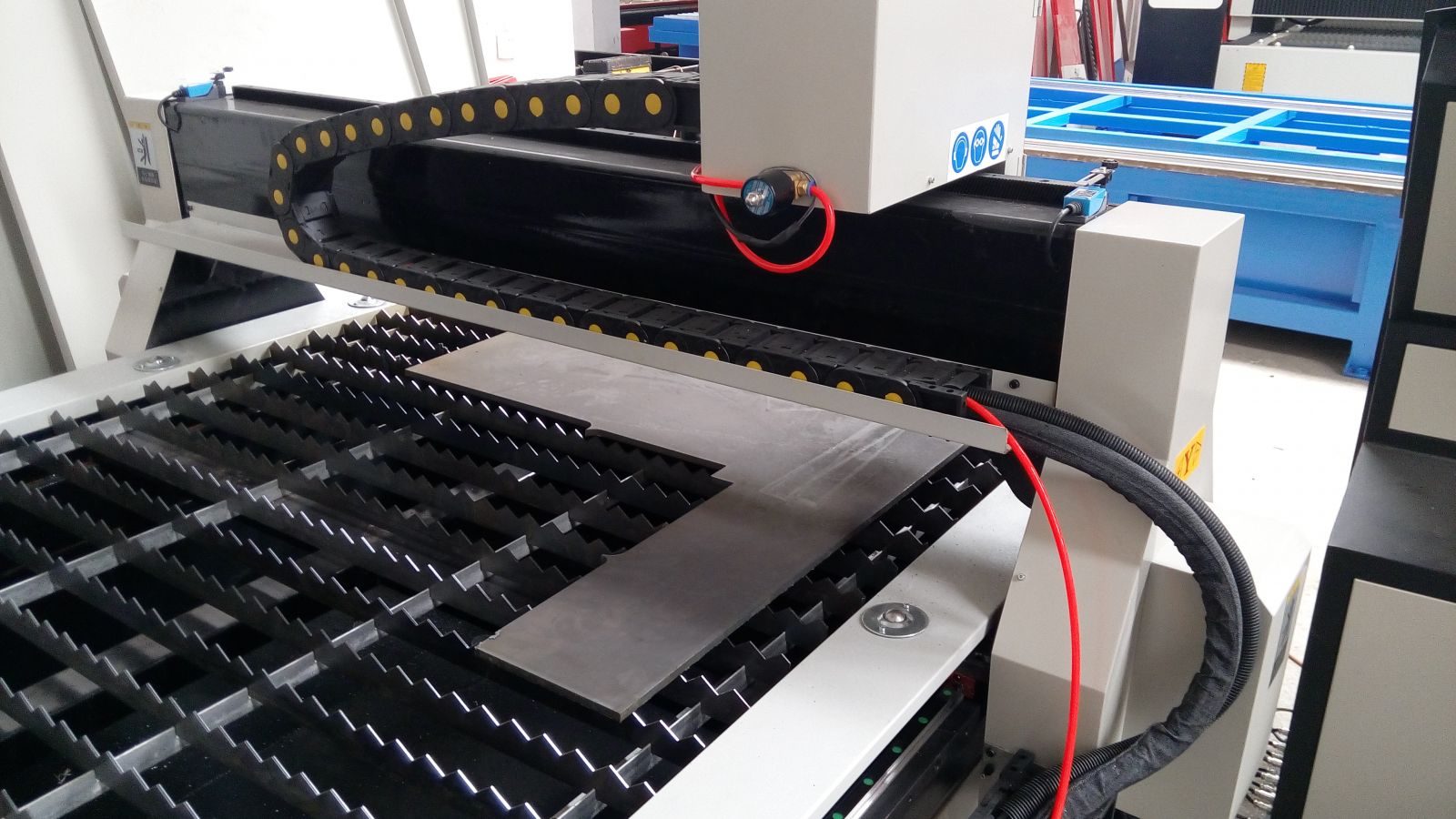

Machine photos:

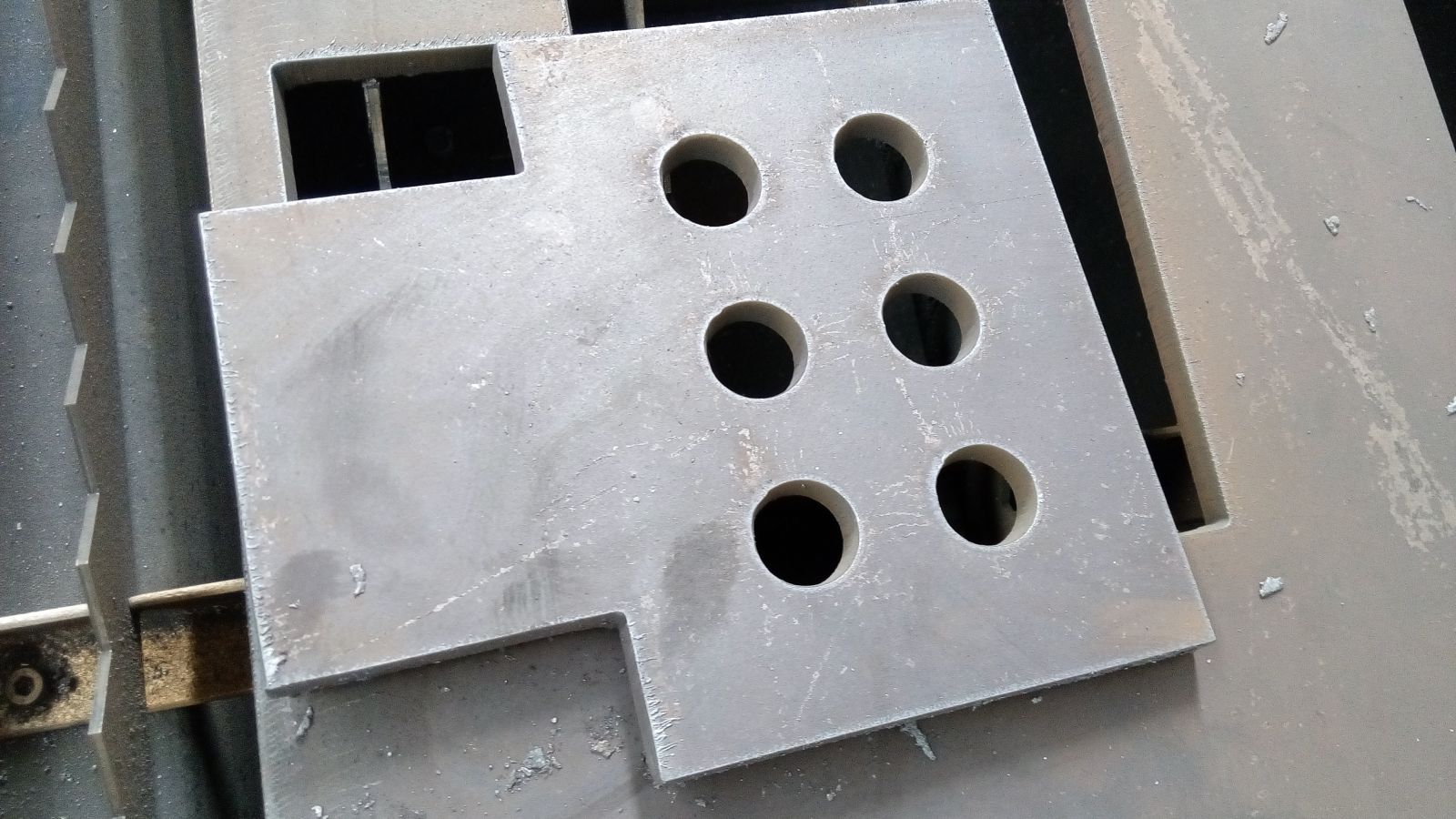

Samples:
