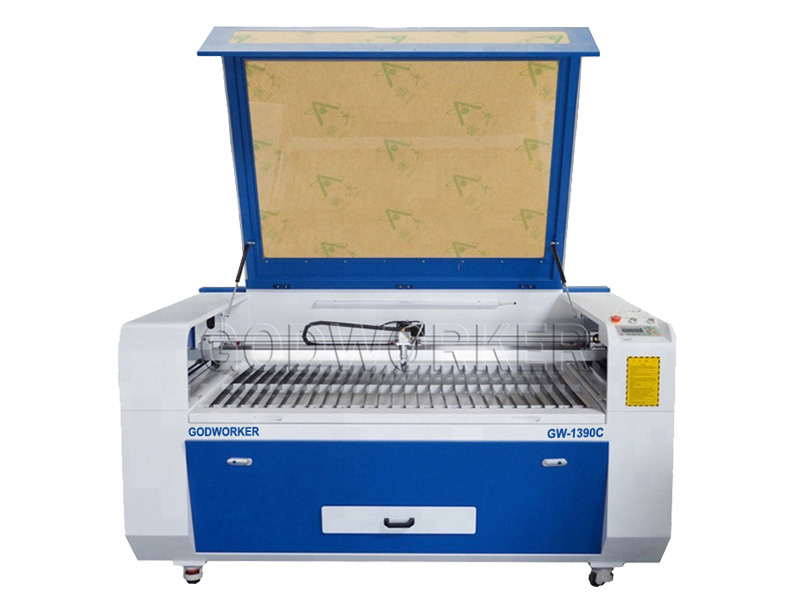

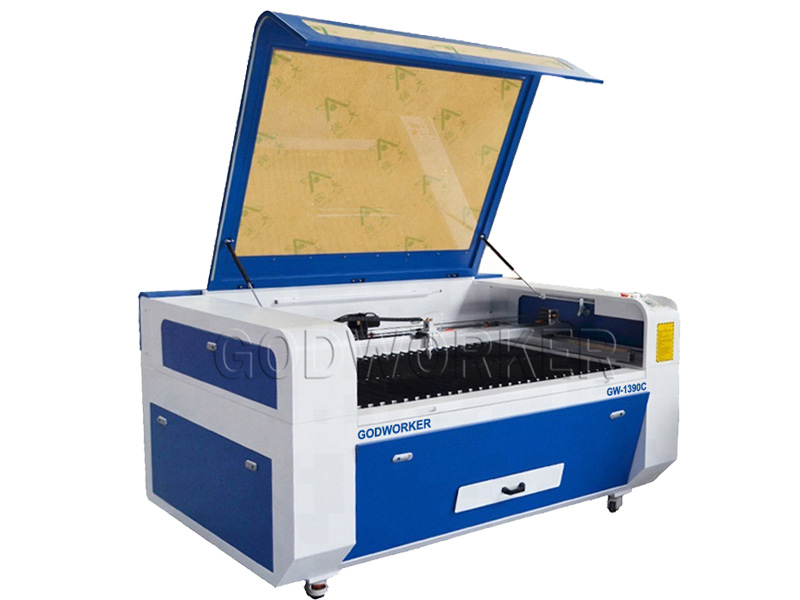

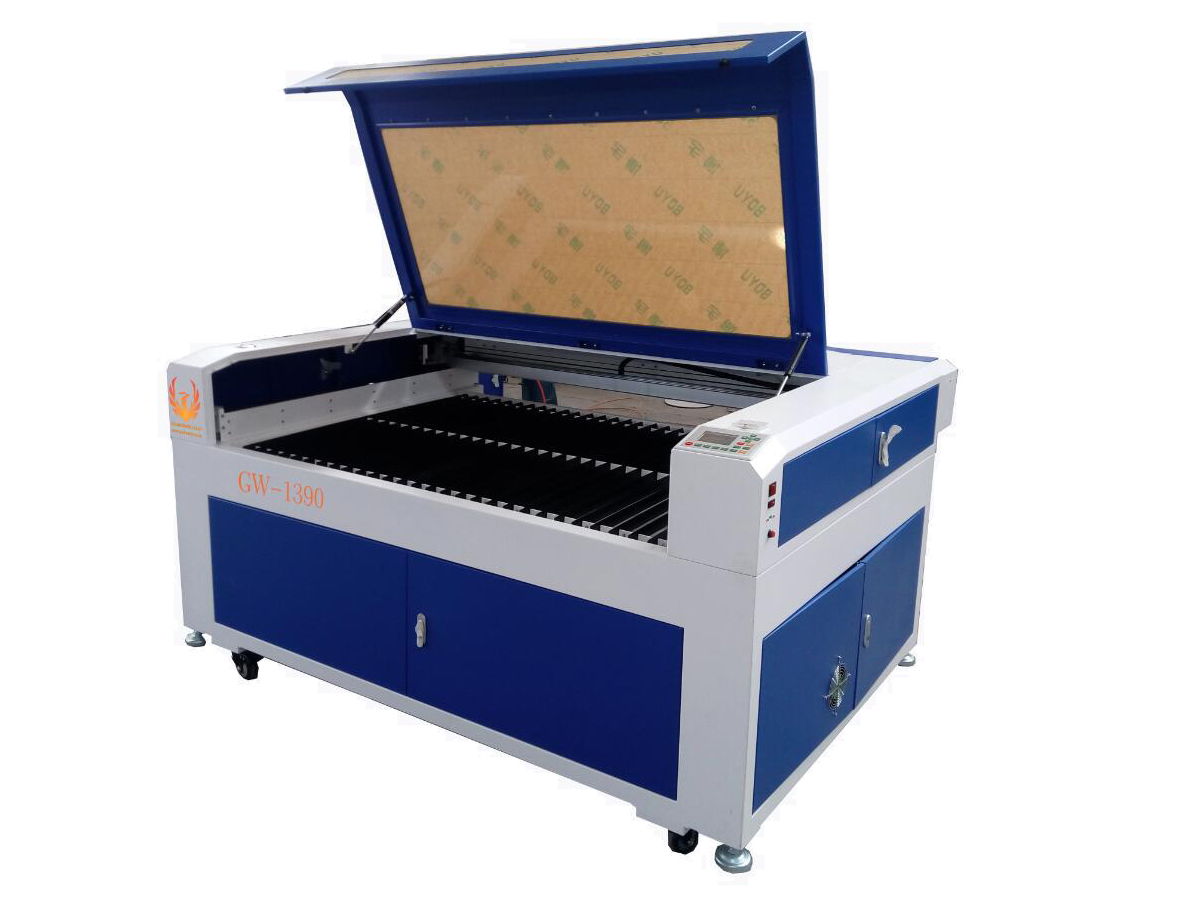

GW-1390 high quality & precision acrylic wood laser cutting machine / top sale co2 laser machine with CE
Product Name:
GW-1390 high quality & precision acrylic wood laser cutting machine / top sale co2 laser machine with CEModel No.:
GW-1390Minimum Order:
1
Product Abstract:
1. Ruida control system; 2. PMI Linear Rail; 3. USA II-VI mirrors and ZnSe lens; 4. YAKO driver and stepper motor; 5. Warranty 2 years for machine
- Product Description
Product DescriptionApplicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
Product ParametersModel
GW-1390C
Engraving and Cutting Area
1300*900mm
Tube type
10.6um CO2 sealed glass tube
Laser Power
80W
130W
150W
180W
300W
Cooling (Pure water cycle)
CW3000
CW5000
CW5200
CW6000
Engraving Speed
0-60,000mm/min
Cutting Speed
0-30,000mm/min
Reposition Accuracy
±0.01mm
Minimum Character Size
English:1mm ; Arabic numbers:1mm
Resolution
1,000--10,000 dpi
File output mode
2.0 USB interface
Machine Power
<3,200W
Support Format and Software
PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, RD work V8
Working Environment Temperature
0-45°C
Drive system
Stepper motors + YAKO drivers
Control system
Ruida 6445G control system
Transmission way
China Taiwan PMI Linear Rail + Japan ONK belt
Exhaust smoke system
550W exhaust fan
Working Voltage
220V,50HZ/60HZ
N.W.
450KG
G.W.
550KG
Warranty time
2 years for machine, 10 months for tube
Package
Plywood case with steel tube
Packing size
1970*1850*1250mm
Delivery time
3--5 working days after received the deposit
Product Details
Product Optional Functions:
Product Samples
