Product Abstract:

1. Ruida control system; 2. PMI Linear Rail; 3. USA II-VI mirrors lens; 4. YAKO driver and stepper motor; 5. RECI laser tube 6. Schneider power switch 7. Omorn limited 8. Laser class IV 9. Operation protector glasses for worker 10. User Manual 11. Warranty 2 years for machine


Product Description

Function Features:

1.High stability and high strength mechanical structure casted by high accuracy model which can ensure stable data motion, high speed, high precision, long-term operation without adjustment and the same precision carving. The design idea of around the body through can add materials from before and behind which for infinite work piece.

2.The stability and integrity design idea with advanced industry cooling system and water alarm Automatic Protection Function, improve the stability and safety of continuous operate. Perfect dust, pollution prevention design greatly improve the overall stability of the machine.

3.Using flying path design, unique structure, small optical path deviation, high stability, easy to adjust. Optical Accessories adopts best imported K9 mirrors and ante focusing mirrors whose reflectivity and transmittance is the best with more detailed spot, more cutting edge .

3.Advanced USB control and Flash Disk (U Disk) off-computer control system are optional.

4.Independent R&D efficient laser power: Adopt new high-voltage switch-mode, PWM master control technology, which is more stable.


Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell

2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.

5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7.Product Identification Industry: Security marking products, etc.


Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.



Parameters:

Model GW-1390
Engraving and Cutting Area 1300*900mm
Tube type 10.6um CO2 sealed glass tube
Laser tube Power 60W / 80W / 100W / 130W / 150W / 180W
Cooling Water cooling chiller CW3000 / 5000 / 5200
Engraving Speed 0-75,000mm/min
Cutting Speed 0-40,000mm/min
Re-position Accuracy ±0.01mm
Minimum Character Size English:1mm ; Arabic numbers:1mm
Resolution 4,000 dpi
File output mode 2.0 USB interface
Machine Power <3,200W
Support Format and Software PLT,DST,DXF,DWG.CDR, AI, Auto CAD, CorelDraw, Rd-work V8
Working Environment Temperature 0-45℃
Motor YAKO Stepper motor
Transmission PMI Linear Rail + Japan ONK belt
Control system Ruida 6442G control system
Exhaust smoke system Big exhaust fan 550W
Working Voltage 110/220V, 50/60Hz
N.W. 500KG
G.W. 620KG
Warranty time 2 years for machine
Package Plywood case
Packing size 2070*1680*1300mm
Delivery time 5--7 working days after received the deposit


What's materials can do by laser:
1390 cnc laser cutting machine



Samples:

Wood Laser Engraving Machine

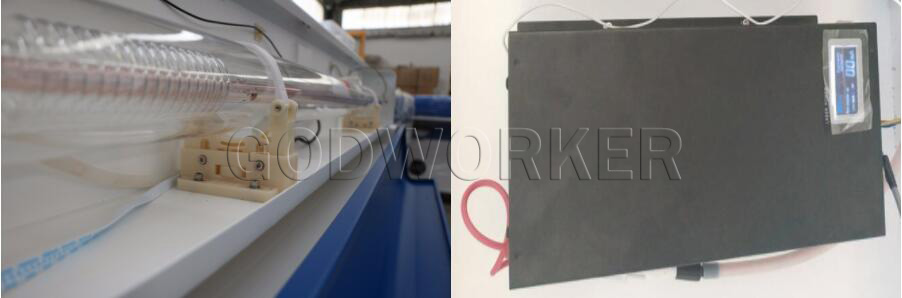

CO2 laser tube and LCD display laser power supply:

CO2 laser tube power available: 60w, 80w, 100w, 130w, 150w, 180w.
60w and 80w are able to do both good engraving and cutting. 100W and above are for cutting. Stronger laser power cuts thicker.

Water cooling system:

S&A brand water chillers, best in china,it is used to cool the laser tube. Different chiller models are available for different wattage laser tubes: CW-3000, 5000, 5200, etc.

Godworker S&A water chiller.

Electric and controller cabinet:

RD6442S DSP offline controller, designs/files can be transferred by the controller cable (blue cable) or by USB flash as well.

Filter circuit, ensures stable and good performance of all the electrical parts.
All wires are labeled with numbers, convenient for checking and maintenance.

Air circuit breaker, better protects the machine.

Driving system:
Adopt YAKO stepper motor, Japan ONK belt and Taiwan PMI linear to get better precision and smoother cutting curves.

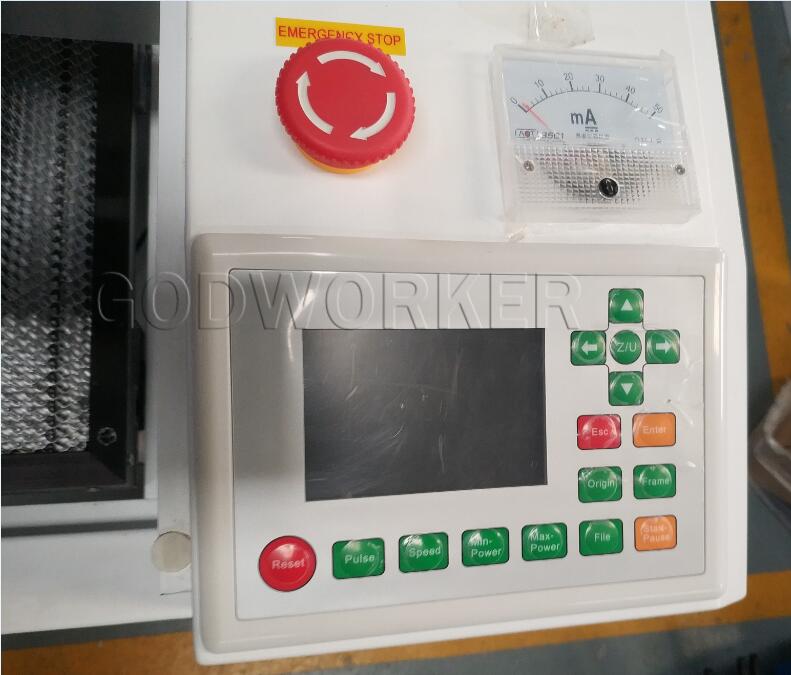

Front operation panel:

DSP control, LCD display, cutting file and route is showing on the display. Laser output power and working speed can be set on this panel (and in machine software as well).

Machine worktable:

Most popular: Anodized aluminum blade table, which hold hard sheet materials, like acrylic, wood, MDF, plastic, etc.

Alternative: Honeycomb table, on which lays soft materials, like cloth, fabric, leather, etc.

USA IIVI mirrors and lens:

Air pump:

(1). Push fumes away from the laser's focal lens to protects the lens from contaminants which could destroy the lens.
(2). Push air into the material's kerf as created by the laser beam, will remove debris/fumes and allow the laser light to penetrate deeper through the material.

air pump- Godworker

Exhaust fan:

Removes smell, dust and smoke. Protects optical parts and the user.

Exhaust fan - Godworker

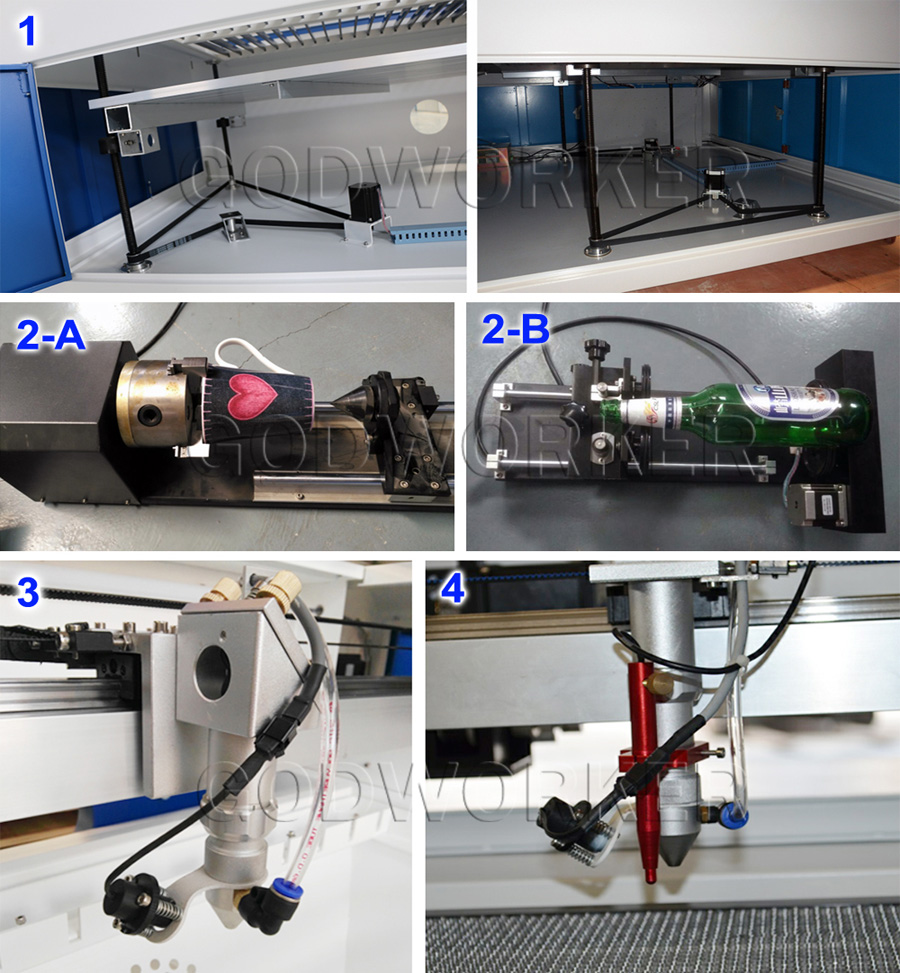

Optional configurations:

1. Motorized up-down table.
With this function, the machine table can be lifted in Z direction (up-and-down) to get more working space. It is necessary if you use rotary or engrave/cut items thicker/higher than 50mm.
2. Rotary (2 types)
It is used to hold and rotate cylindrical items during engraving and cutting, such as wine bottles, glasses, mugs, pipes, etc.
3. Red dot
Laser is invisible. Red dot shows the laser position on material, for better locating.
4. Auto focusing
Auto focusing has to work together with motorized up-down table. The machine adjusts the focal length automatically before engraving and cutting, which replaces manual focusing, improving working efficiency.

Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.

Warranty
2-YEARS WARRANTY, LIFETIME MAINTENANCE
1. Two-years warranty for the machine, except for consumables.
2. Laser tube warranty:
- CO2 40W, 50W, 60W tubes: 3 months;
- CO2 80W, 100W, 130W, 150W, 180W tubes: 10 months;
- CO2 280W, 300W tubes: 12 months.
3. Optical lens and mirrors are not within warranty scope.

Customer and machine management system
Every machine is labeled and has its Serial No.
The machine data and information all are recorded in company system for lifetime. If there would be any problem with your machine even after 5 or 10 years, even the sales contacting with you left Godworker, it is still easy to track the machine details and provide fast solution.



Advantages of Godworker brand

1.Offering the specification for the machine,2 years warranty.

2.English software,user manual and operation video

3.24 hours technical support by email,calling,if you have any problems,we will within 12 hours to solve it.

4.During the warranty period,if any part is broken,we will provide for free.

5.Support engineer come to your country for training.

6.Packing: Plywood case export standard package

7.Shipment time: Within 7 working days after receive the payment.in the meanwhile,we will report the production process in time.
