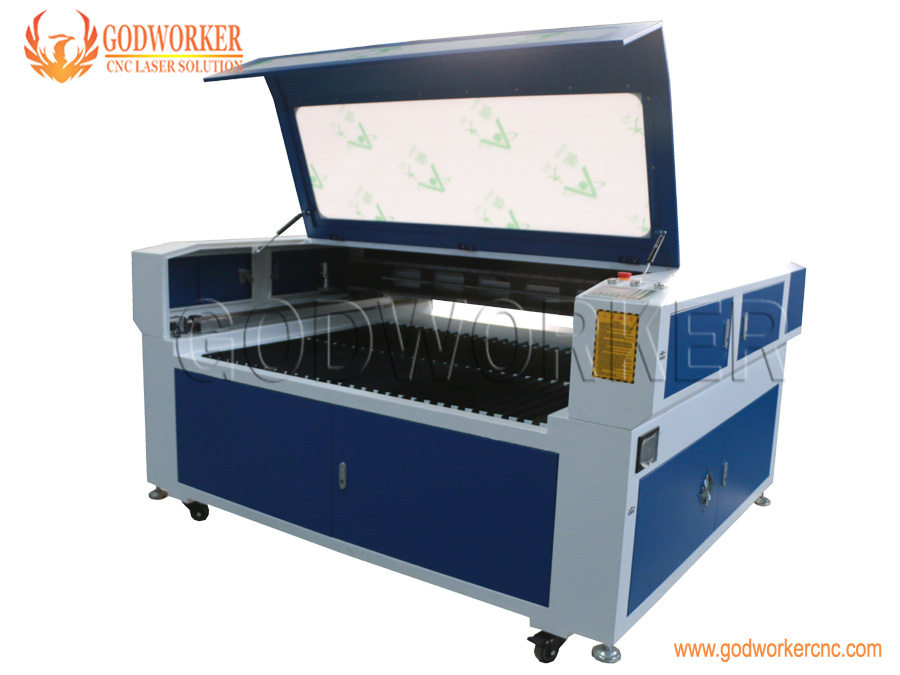

GW-1610 CO2 Multi cnc laser cutting machine for 2mm steel and 30mm acrylic

  • GW-1610 CO2 Multi cnc laser cutting machine for 2mm steel and 30mm acrylic
  • GW-1325 metal nonmetal laser cutting machine 150W 260W
  • GW-1530 / 2030 CO2 metal nonmetal laser cutting machine
  • GW-1390 U.S Synrad metal tube 200W laser cutting machine for metal and nonmetals
  • GW-1390 metal and nonmetal laser cutting machine with RECI W6 laser tube, Yongli-280W laser tube
  • GW-1325 metal nonmetal laser cutting machine 280W + 60W

Product Abstract:

1. Multi lup & dwon laser head; 2. Ruida / Leetro DSP offline control system; 3. Oxygen assisted cutting device; 4. HIWIN / PMI Linear Rail; 5. USA II-VI mirrors & ZnSe lens;


Product Description

Laser engraving cutting machine standard configuration:

 1.Lens ---II-VI lens

 2.Reflective mirror ----Molybdenum mirror dia25mm or dia27mm

 3.Stepper----leadshine stepper motor and driver

 4.Guiderail---TAIWAN linear Guide rail,

 5.Belt---Germany belt more difficult to grind.Hi precision gear

 6.Laser tube---Chengdu/Shanghai or Reci brand laser tube, good beam to cut

 7.working table----honey comb or aluminum strip table

Free spare parts for laser machine:



 1.1xcommunication cable

 2.1x USB cable

 3.1x CD(RDCAM software 5.3/ 6.0 english version)

 4.1x air compressor

 5.1x exhaust fan

 6.1x exhaust fan smoke pipe

 7.1x water pipe/air pipe

 8.industries chiller cw5200



 Applicable Materials:

Carbon steel,stainless steel  Acrylic, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Wood, Balsa, Plywood, MDF, Glass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Rubber Sheet, etc.



Applicable Industries:

 Advertising, Signs, Signage, Sign Letters, Advertising Letters, LGP, Photo Frame, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc



 Machine Functions:

 1. Adopted DSP digital control technology integrated frame structure to ensure the work stability.

 2. Support latest software AutoCAD, CorelDRAW CAD, CDR and other graphical software and make it available to directly output pictures.

 3.The USB data interface can support heat play . Quick data transitting without taking up computer resource Chinase & English edition liguid display can make it easy for user to operate.

 4.Adopts high Precision stepper  motor as drive par ,utilizes three original Taiwan  straight line guide tracks in  X and Y axis.

 5.Uses four pieces of specialized laser lens, and enables the machine speedy and accuracy incisive.

 6.DSP offline control system

 7.LCD touch panel

 8.Pass through design

 9.Emergency stop button

 10.Clean cut perfectly smooth

 11.High precision ,high speed,

 12.Single head or double head

 13.file can direct output from the corel,autocad

 14.Professional supplier laser cutting and engraving machine ,cnc router .and laser marking machine.

  15.This series of laser cutting and engraving machine is an ideal choice for professional user.

Parameters:



Model

GW-1610

Engraving and Cutting Area

1600*1000mm

Tube type

CO2 sealed glass tube

Laser wave

10.6um

Laser Power

RECI-150W

Cooling

Pure water (GZ teyu water chiller CW5200)

Engraving Speed

0-75,000mm/min

Cutting Speed

0-40,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

4,000 dpi

File output mode

2.0 USB interface

Machine Power

<2,000W

Support Format and Software

PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3

Working Environment Temperature

0-45°C

Drive system

Leashine Stepper motor

Control system

Ruida DSP offline control system

Exhaust smoke system

750W exhaust fan ( Optional Air purified)

Working Voltage

10% ± 220V,50HZ/60HZ

N.W.

600KG

G.W.

660KG

Warranty time

2 year for machine (12 months for RECI tube)

Package

plywood case with steel

Packing size

2370*1850*1300mm

Delivery time

5 working days after received the deposit

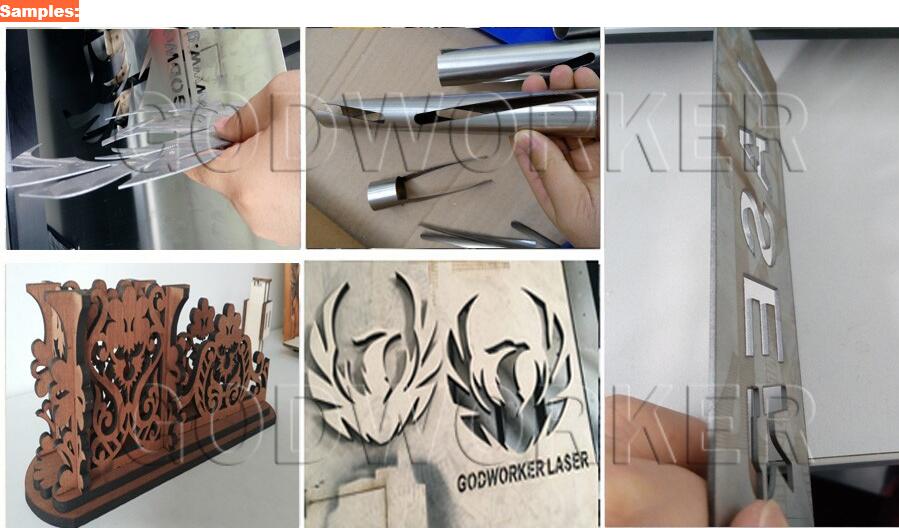

Samples:
