N95 mask laser marking machine 5W UV laser flying marking machine

  • MOPA color fiber laser marking machine
  • IPG fiber laser marking machine
  • Portable fiber marking machine for steel name plates and tag, plates
  • GW-50C coconut laser marking machine, invitation card laser marking machine,co2 laser marking machine for wood, co2 laser marking machine for leather, wedding card laser marking machine
  • Godworker 200W Coherent CO2 RF laser marking machine for Invitation card, wedding card, leather, wood
  • Fiber Laser Cleaning Machine for Metal Surface Rust Removal,metal surface rust removal laser cleaning machine
  • Portable CO2 RF laser marking machine Dealer price
  • Portable fiber laser marking machine
  • Gold silver jewelry laser marking cutting machine 50W 70W 100W
  • Large size Dynamic focusing CO2 laser marking machine for cutting paper card
  • 30W Handheld fiber laser marking machine
  • 60W 100W 3D relief fiber laser marking machine
  • N95 mask laser marking machine 5W UV laser flying marking machine

Product Abstract:

UV Laser marking machine has high beam quality & small spot, heat affected area is small of processing, which can be used for ultra-fine marking, special material marking UV Laser marking Machine is suitable for processing more extensive materials


Product Description

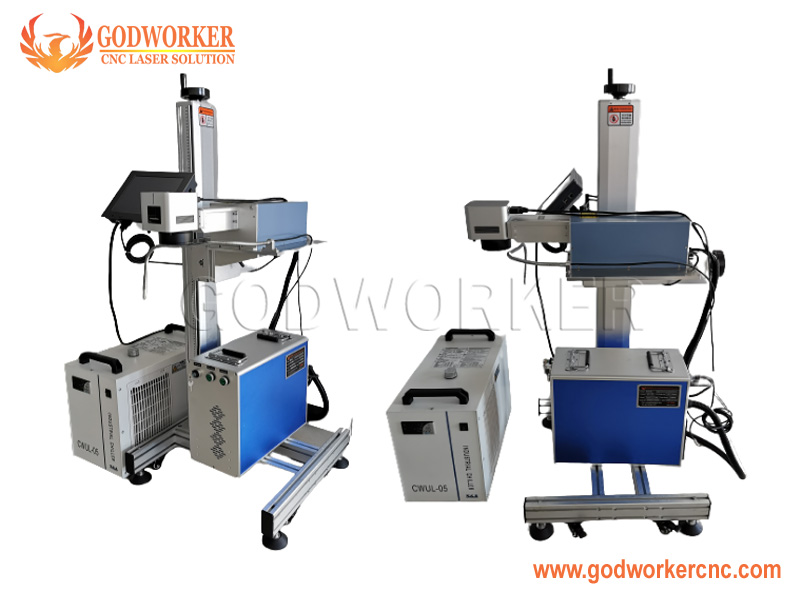

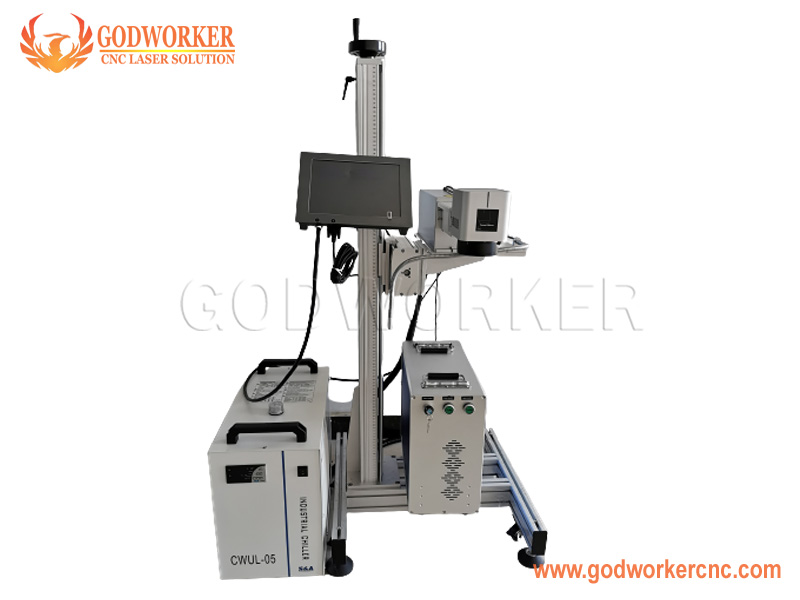

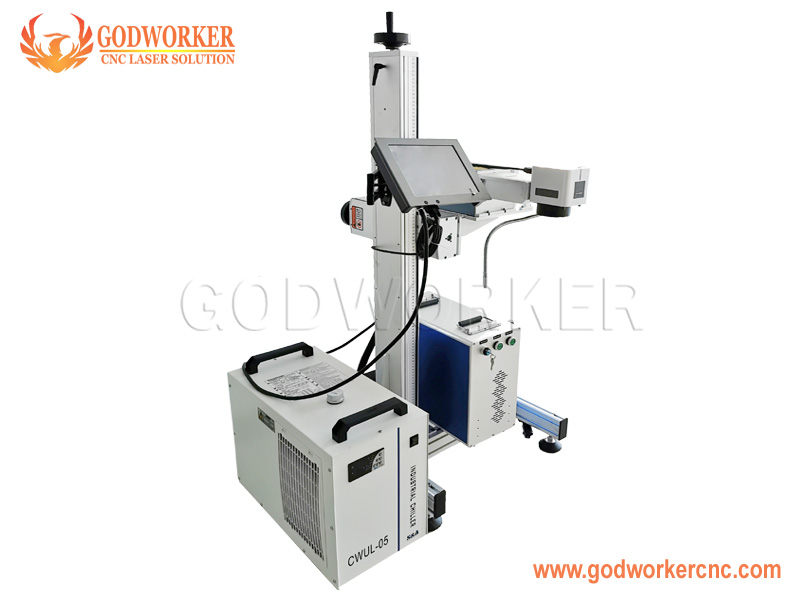

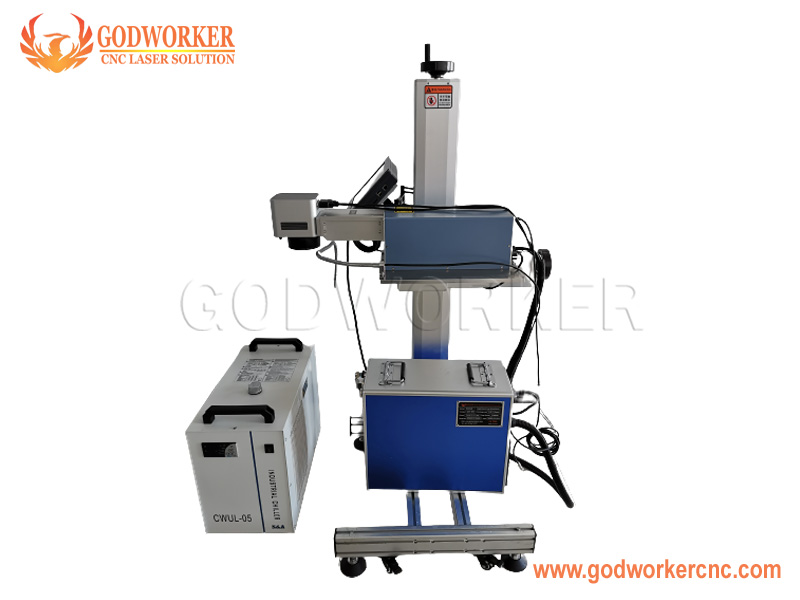

5W UV laser flying marking machine

Features:

  • Using the China Huaray UV laser, three times optical resonant cavity frequency doubling output 355nm wavelength laser, electro-optical conversion efficiency, high beam quality is TEM100 mode.

  • UV laser is a cold light source, heat-affected zone is small, excellent beam quality to create ultra fine marking results.

  • Imported scanning, marking fast, suitable for both micro-cutting and drilling.

  • High peak power and a few characteristics of thermal effects, is very suitable alumina, zirconia ceramic cutting drilling.

  • The laser 20,000 hours maintenance free, no supplies, use of low cost, energy saving

  • One of the modular design, easy maintenance, compact.

  • Mark Green, ROHS standards.

  • The software can receive DXF, PLT, BMF, AI, JPG and other formats, and can automatically generate serial number and production date, barcode, two-dimensional code.



Application:

Mainly used in ultra-fine processing of high-end market, pharmaceuticals, cosmetics, video and other polymer materials, the surface of the bottle marking, the effect is very fine, marking cleaning firm, better than ink-jet and no pollution; flexible PCB board marking, Scribing; silicon wafer micropores, blind hole processing; LCD liquid crystal glass two-dimensional code marking,

glassware surface drilling, metal surface coating marking, plastic buttons, electronic components, gifts, communications equipment, building materials, etc.



For Materials:

It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser's processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.



For Industries:

Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.



Technical Parameters:

Model

GW-5UL UV Flying Laser marking Machine

Output power

5W

Laser type

355nm Huaray UV Laser

Working area

110*110mm

Pulse length

20ns@50Khz

Beam Quality M2

<0.8mm

Min Line Width

<0.01mm

Mini line speed

<0.01mm

Min Character

<0.12mm

Frequency tuning Q

8KHz-100KHz

Marking Speed

≤8000mm/s

Marking Depth

≤0.5mm

Repeat Precision

±0.001mm

Voltage

Single phase 220V, 50/60Hz

Machine power

800W

Cooling

Water Cooling CWUL-05 Chiller

System Composition

Control System (Touch screen)

Working Environment

Clean and Dust Free

Operating Temperature

10-35

Humidity

5% to 75% (Free of Condensed Water)

Warranty

3 years for machine, 2 years for laser source

Packing size

820*770*1650mm

Gross Weight

150kgs



Samples show:

masks smaples

mask

Details show:

Laser source: 355nm uv laser source,high quality,high speed.

Huaray 5W UV laser

F-theta lens: Precision optical elements. specification:100X100mm,200X200mm (optional).

Lens



Galvanometer: Sino galvanometer,Fast response speed.

Galvo

Lifting Handle: It can manual adjust laser path 180°. Also can move it forth and back. In lifing has ruler scale indicator.

Lifting

CNF Control touch screen: Adopt the embedded operating system which performance is leading domestic peers, good touch interface and powerful control system that can meet the demand of most industries application process in market.

CNF controller

Marking sensor: Detect products and send marking signale to laser system.

Sensor

Encoderfeel the conveyor speed than control system can auto adjust marking speed to match it

Encoder

Water chiller: Reduce machine operating temperature.

Chiller

Package:
Package
